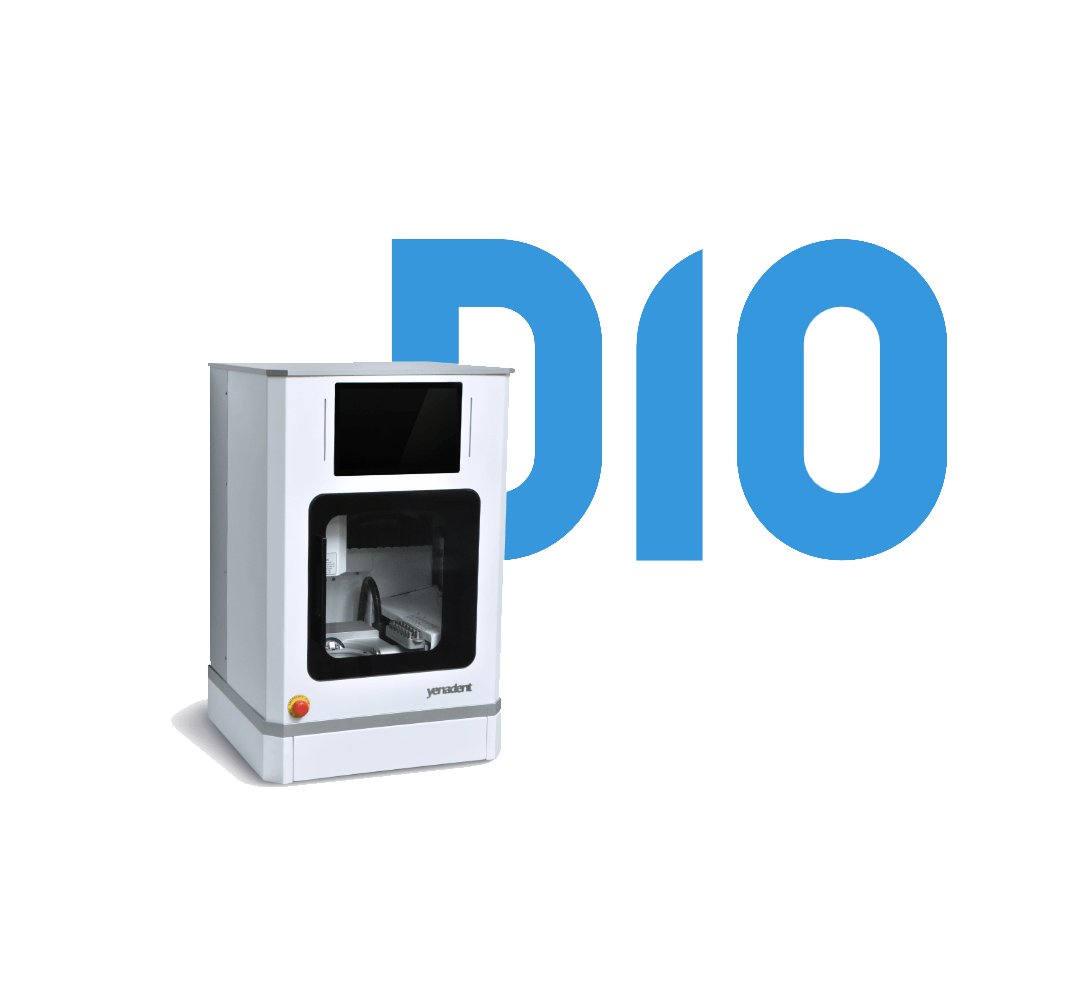

Smaller yet spacious.

Can mill Wax, peek, soft metals, zirconium and pmma with optional ceramic.

Previous
Next

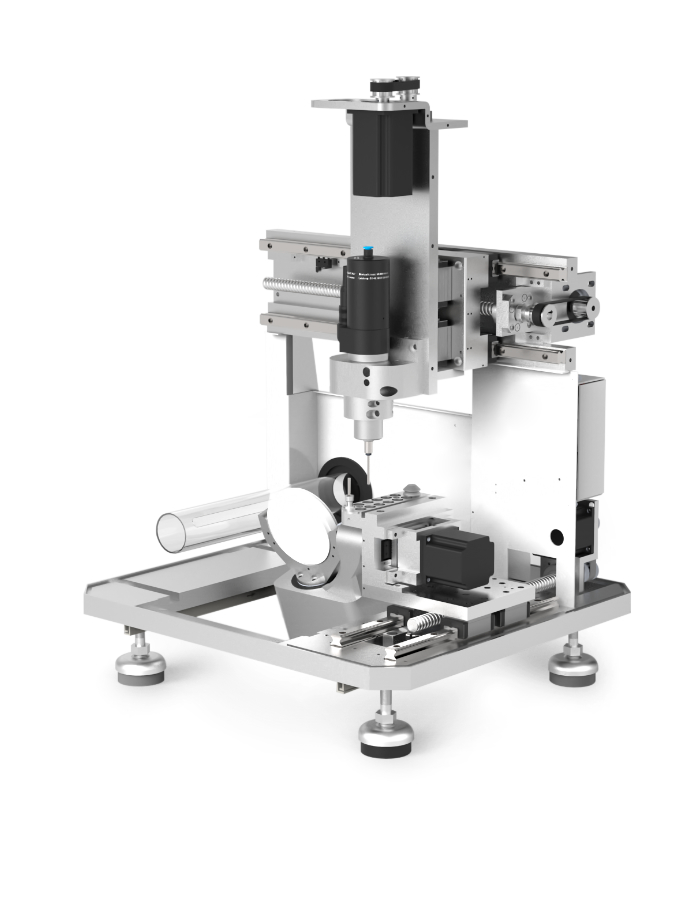

Hardware

  1. Work area light
  2. Tool length switch IP67
  3. Precision guides and ball screws
  4. PC with touch screen
  5. Precision gearboxes

Technical

  1. 5 Axis
  2. Movements : 200 x 110 x 110mm
  3. Control: High-Speed YC
  4. Axis motors: Micro-Stepper
  5. Spindle power: 0.5 kW
  6. Spindle RPM: 60.000 rpm
  7. Number of blocks: 1
  8. Tool Change: 12 pockets
  9. Tool length switch: Standard
  10. Weight : 74 kg

Software

  1. Cam Software 5 axis
    (Requires optional PC)
  2. Sister tool
  3. Auto tool length check
  4. Receiving notifications by email
  5. Batch Jobs
